Herringbone Paver Patios: Designs, Layouts & Material Guide
Explore how the strongest interlocking paver pattern adds timeless V-shaped depth to patios, driveways and pool decks.
Quick Specs
At a Glance- Design Style
- Classic to Contemporary, Dense Interlock
- Difficulty Rating
- Intermediate
- Best For
- Driveways, high-traffic patios, freeze-thaw climates
- Estimated Time
- 1–3 weekends depending on 90° vs 45° layout
- Materials
- 4×8 or 6×9 rectangular pavers (brick or concrete), CR-6 base, ASTM C33 bedding sand, polymeric sand, edge restraints
- Cost Range
- $18–$30 / sq ft installed · $8–$16 / sq ft DIY materials
★Key benefit: The strongest interlocking pattern — angled V-joints resist lateral shifting in every direction.
What Is the Herringbone Pattern?
Herringbone lays pavers at alternating 90° angles to each other, forming a continuous zig-zag or V-shape across the field. It is the modern descendant of opus spicatum — "spiked work" — the technique Roman engineers used on roads and floors specifically because the angled interlock resisted the lateral push of cart wheels.
Why homeowners choose it: Unmatched stability — short, constantly interrupted joint lines lock every unit against its neighbors and spread loads over multiple pavers. Visual energy — the V-bands become the patio's signature from above. Design flexibility — the same geometry reads red-brick traditional or charcoal contemporary.
It is the only pattern every major paver manufacturer (Belgard, Unilock, Techo-Bloc, Cambridge) recommends for vehicular traffic, and ICPI specifies it as the preferred drive layout.
Types & Varieties of Herringbone
90° Herringbone: Pavers run parallel and perpendicular to the patio edges. Clean, restrained, easier to lay out, and lighter on perimeter waste.
45° Herringbone: The pattern cuts diagonally across the patio for a dramatically more dynamic look — at the cost of extensive perimeter cutting and 10–15% waste.
Single vs. Double Herringbone: Single lays one unit at each angle; double sets paired units together, creating wider V-bands that suit large patios and bigger formats.
Permeable Herringbone: Aggregate-filled open joints in a 45° layout maintain stability while letting water infiltrate — ideal for drainage-critical sites.
Choosing the Right Materials for Your Herringbone Pattern Patio
Compare the most common paver materials side by side — pick by look, budget, or intended use.
| Material | Why It Works | Cost / sq ft | Best For |
|---|---|---|---|
| Clay Brick Pavers | Color baked all the way through, heritage character, and the traditional material for classic herringbone courtyards. | $4–$10 / sq ft | Classic and heritage herringbone patios |
| Concrete Pavers (4×8 / 6×9) | Precise sizing for tight interlock, available in dozens of colors. The most popular herringbone material for patios and driveways. | $2–$6 / sq ft | High-traffic patios and driveways |
| Permeable Pavers | Widely spaced with open joints for infiltration. Herringbone is the most recommended pattern for permeable systems because of its interlock geometry. | $4–$9 / sq ft | Drainage-critical patios and municipalities |
Installation Tips & Common Mistakes to Avoid
What the pros do differently on herringbone pattern patios — and the failure points that show up years later.
✓ Installation Tips
- ✓
Start from a straight reference line and set pavers in an L: one unit flat, one at 90° to it, repeating. Check with a square constantly — the pattern drifts fast if the first corner is a degree off.
- ✓
Buy a single batch and keep 10–15% spare pavers. Herringbone's cut perimeter needs matching units, and concrete color varies between production runs.
- ✓
Finish with a soldier-course border perpendicular to the V-bands — it frames the angle and gives edge restraints a clean line to follow.
⚠ Common Mistakes to Avoid
- ✕
An off-square starting corner. The error compounds row after row and turns the V-bands into distortion bands half a patio away.
- ✕
Cutting perimeter units from a different paver batch. Visible color mismatch is permanent — always pull spares from the same delivery.
- ✕
Compacting the bedding sand before laying. Pavers need that uncompacted inch to seat flat when the plate compactor runs over the finished surface.

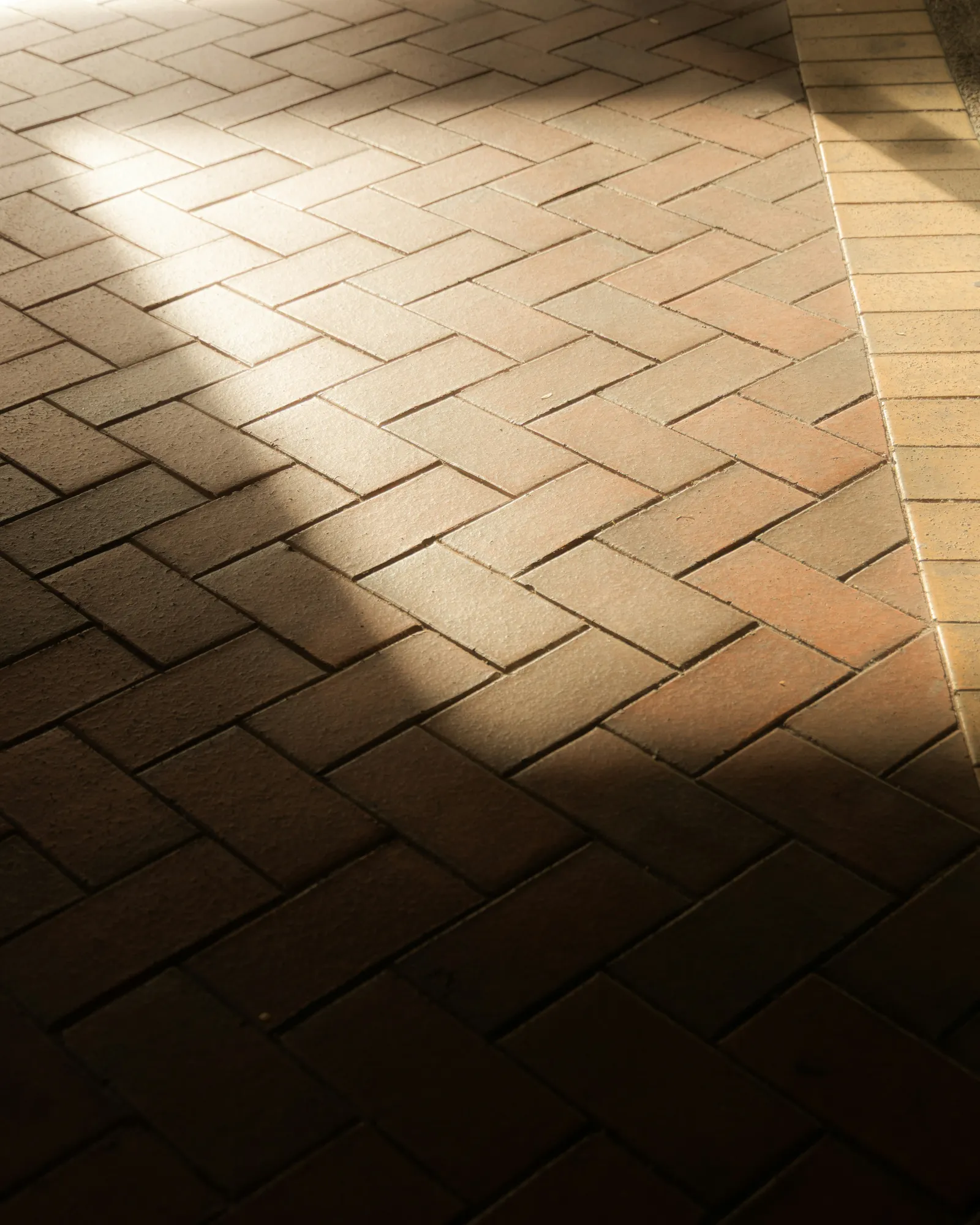

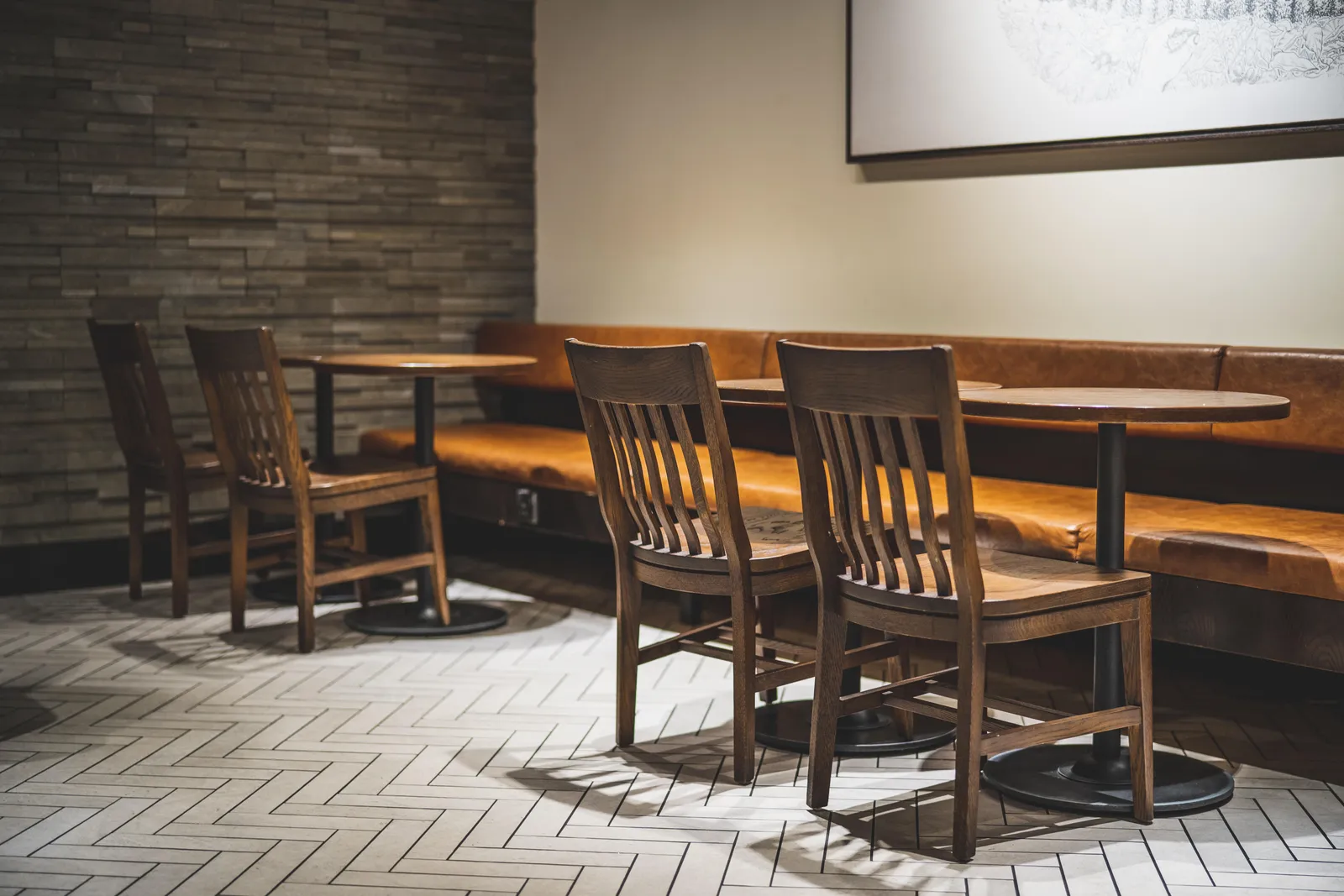

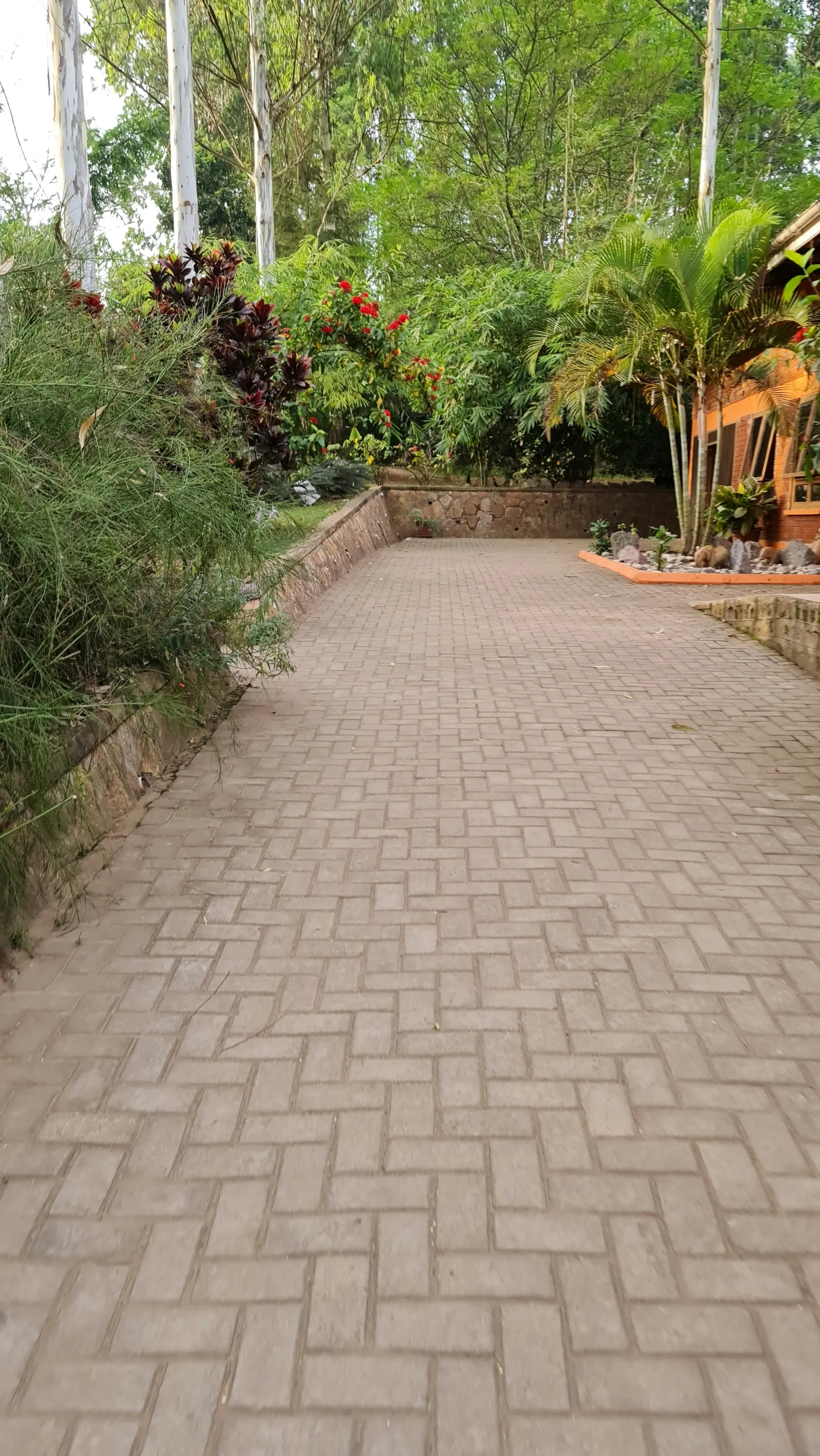

Real Herringbone Pattern Patios
Save the ones that feel right — then use the calculator below to see what your version would cost.
