Ashlar Pattern Paver Patios: Designs, Layouts & Material Guide
Learn how the timeless, random-look Ashlar pattern adds elegant architectural depth to backyards, pool decks, and walkways.
.webp)
Quick Specs
At a Glance- Design Style
- Rustic, Elegant, European Stonework
- Difficulty Rating
- Intermediate / Advanced
- Best For
- Patios, pool decks, large driveways
- Estimated Time
- 1–2 weekends for a 300–400 sq ft patio
- Materials
- 3–4 size modular pavers, CR-6 crushed stone base, ASTM C33 bedding sand, fine polymeric joint sand, edge restraints
- Cost Range
- $15–$30+ / sq ft installed · $8–$18 / sq ft DIY materials
★Key benefit: Hides patio size irregularities and creates a natural, non-repetitive visual flow.
.webp)
What Is the Ashlar Pattern?
"Ashlar" refers to square-cut or rectangular stones of varying sizes laid out in a multi-size grid. Unlike running bond or basketweave, ashlar uses 3 to 5 different stone sizes to create a structured yet non-repetitive geometric pattern — every joint line is broken before it can run long enough to be noticed.
Why homeowners choose it: Visual continuity — the pattern breaks up monotonous long lines and makes small yards feel larger. Structural strength — interlocking stone dimensions distribute weight evenly across the base. Timeless aesthetic — it resembles historic European courtyards and natural slate masonry.
Because no two adjacent courses line up, an ashlar patio reads as hand-laid natural stone even when the units are factory-manufactured concrete. That visual "handmade" quality is what makes ashlar the default choice for resort-style backyards.
Types & Varieties of Ashlar Patterns
3-Piece Ashlar (Most Popular): Uses small, medium, and large rectangular or square modules. Easy to lay using pre-packaged paver kits from brands like Belgard and Unilock.

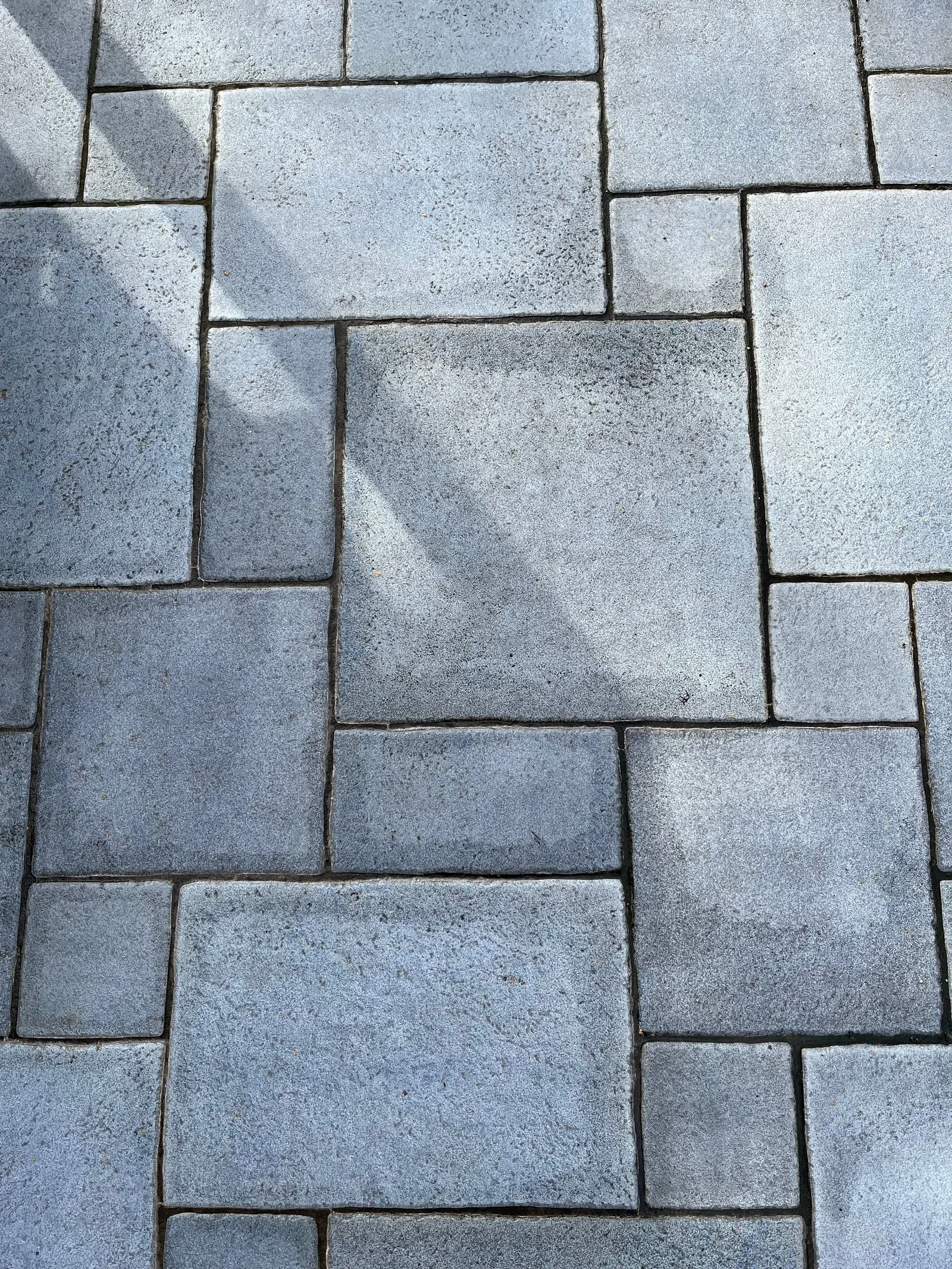

4-Piece / Multi-Size Ashlar: Uses four distinct square and rectangle dimensions for a more randomized, organic look. Slightly harder to install because the module sheet has more pieces — but reads the most like true flagstone.
Tumbled vs. Chamfered Edge: Tumbled pavers have softened, weathered edges for a rustic old-world cobblestone feel. Smooth or chamfered edges keep sharp, clean lines that suit contemporary architectural homes.
Bordered Ashlar: A soldier-course or contrasting border wraps the field, framing the random interior so the patio reads as a designed zone rather than a floating layout.
.webp)
Choosing the Right Materials for Your Ashlar Pattern Patio
Compare the most common paver materials side by side — pick by look, budget, or intended use.
| Material | Why It Works | Cost / sq ft | Best For |
|---|---|---|---|
| Concrete Pavers (3-Piece Kits) | Most cost-effective option. Uniform thickness, widely available in packaged 3-piece ashlar modules, and easy for a DIY builder to screed and set. | $6–$14 / sq ft | Most backyards and DIY installs |
| Natural Slate & Flagstone | Premium look with unique color veining and high durability. Thickness varies piece to piece, so it demands a skilled installer and a dry-set mortar or thicker sand bed. | $15–$40 / sq ft | High-end patios and custom stonework |
| Travertine Pavers | Stays cool underfoot in hot sun and carries buff, ivory and silver tones. Naturally slip-friendly around water, making it a favorite for pool decks and warm climates. | $12–$30 / sq ft | Pool surrounds and warm climates |
Installation Tips & Common Mistakes to Avoid
What the pros do differently on ashlar pattern patios — and the failure points that show up years later.
✓ Installation Tips
- ✓
Start from a module sheet — never freestyle. Every supplier publishes a 3- or 4-size repeat; lay one full module and repeat it to guarantee the pieces consume each other with no awkward leftovers.
- ✓
Check grid alignment as you go. Ashlar looks random but follows a strict repeating unit — keep a string line and tape measure handy and verify the module matches every few courses.
- ✓
Keep partial cuts at the perimeter and work the border inward. Reserve spare modules for angled cuts along stairs, curves and house walls.
⚠ Common Mistakes to Avoid
- ✕
Continuous joint lines longer than 4–5 feet. Long, unbroken seams flatten the random look and weaken interlock — always stagger them deliberately.
- ✕
Four corners meeting at one point. The classic grid failure; rotate the module so corners always land on at least three different paver faces.
- ✕
Freestyling without a module sheet. It silently pushes waste from ~12% toward 20%+ and produces that tell-tale "patterned" look you were avoiding.
Real Ashlar Pattern Patios
Save the ones that feel right — then use the calculator below to see what your version would cost.
.webp)
.webp)
